Create a new Cairo-based graphics device

Cairo initializes a new graphics device that uses the cairo graphics library for rendering. The current implementation produces high-quality PNG, JPEG, TIFF bitmap files, high resolution PDF files with embedded fonts, SVG graphics and PostScript files. It also provides X11 and Windows interactive graphics devices. Unlike other devices it supports all graphics features including alpha blending, anti-aliasing etc.

CairoX11, CairoPNG, CairoPDF, CairoPS and CairoSVG are convenience wrappers of Cairo that take the same arguments as the corresponding device it replaces such as X11, png, pdf, etc. Use of the Cairo function is encouraged as it is more flexible than the wrappers.

Cairo(width = 640, height = 480, file="", type="png", pointsize=12,
      bg = "transparent", canvas = "white", units = "px", dpi = "auto",
      ...)

CairoX11(display=Sys.getenv("DISPLAY"), width = 7, height = 7,
         pointsize = 12, gamma = getOption("gamma"), bg = "transparent",
         canvas = "white", xpos = NA, ypos = NA, ...)
CairoPNG(filename = "Rplot%03d.png", width = 480, height = 480,
         pointsize = 12, bg = "white",  res = NA, ...)
CairoJPEG(filename = "Rplot%03d.jpeg", width = 480, height = 480,
         pointsize = 12, quality = 75, bg = "white", res = NA, ...)
CairoTIFF(filename = "Rplot%03d.tiff", width = 480, height = 480,
         pointsize = 12, bg = "white", res = NA, ...)
CairoPDF(file = ifelse(onefile, "Rplots.pdf","Rplot%03d.pdf"),
         width = 6, height = 6, onefile = TRUE, family = "Helvetica",
         title = "R Graphics Output", fonts = NULL, paper = "special",
         encoding, bg, fg, pointsize, pagecentre, ...)
CairoSVG(file = ifelse(onefile, "Rplots.svg", "Rplot%03d.svg"),
         width = 6, height = 6, onefile = TRUE, bg = "transparent",
         pointsize = 12, ...)
CairoWin(width = 7, height = 7, pointsize = 12,
         record = getOption("graphics.record"),
         rescale = c("R", "fit", "fixed"), xpinch, ypinch, bg =
         "transparent", canvas = "white", gamma = getOption("gamma"),
         xpos = NA, ypos = NA, buffered = getOption("windowsBuffered"),
         restoreConsole = FALSE, ...)
CairoPS(file = ifelse(onefile, "Rplots.ps", "Rplot%03d.ps"),
        onefile = TRUE, family, title = "R Graphics Output", fonts = NULL,
        encoding, bg, fg, width, height, horizontal, pointsize, paper,
        pagecentre, print.it, command, colormodel)

Arguments

width

width of the plot area (also see units).

height

height of the plot area (also see units).

file

name of the file to be created or connection to write to. Only PDF, PS and PNG types support connections. For X11 type file specifies the display name. If NULL or "" a reasonable default will be chosen which is "plot.type" for file-oriented types and value of the DISPLAY environment variable for X11. For image types the file name can contain printf-style formatting expecting one integer parameter which is the page number, such as "Rplot%03d.png". The page numbers start at one. The filename is expanded using path.expand.

type

output type. This version of Cario supports "png", "jpeg" and "tiff" bitmaps (png/tiff with transparent background), "pdf" PDF-file with embedded fonts, "svg" SVG-file, "ps" PostScript-file, "x11" X11 interactive window and "win" Windows graphics. A special type "raster" creates an image back-end that produces no actual output file but can be used in conjunction with any of dev.capture(), grid.cap() or Cairo:::.image() to create in-memory images. Depending on the support of various backends in cairo graphics some of the options may not be available for your system. See Cairo.capabilities function.

pointsize

initial text size (in points).

canvas

canvas color (must be opaque). The canvas is only used by devices that display graphics on a screen and the canvas is only visible only if bg is transparent.

bg

plot background color (can include alpha-component or be transparent alltogether).

units

units for of the width and height specifications. It can be any of "px" (pixels), "in" (inches), "pt" (points), "cm" (centimeters) or "mm" (millimeters).

dpi

DPI used for the conversion of units to pixels. If set to "auto" the DPI resolution will be determined by the back-end.

...

additional backend specific parameters (e.g. quality setting for JPEG (0..100), compression for TIFF (0,1=none, 5=LZW (default), 7=JPEG, 8=Adobe Deflate), locator for a custom locator function in image back-ends)

The PDF back-end supports following additional arguments: author, subject, creator, keywords, create.date and modify.date. If specified, all of the above must be single strings. The dates must be in PDF-defined format, you can use something like paste0("D:",gsub("[- :]","",.POSIXct(Sys.time(),"GMT"))),"Z") to convert from POSIXct to PDF format. In addition, the version argument (as documented in pdf) can be either a string or a scalar real number. However, the cairographics library only supports values 1.4 and 1.5.

All parameters listed below are defined by the other devices are are used by the wrappers to make it easier replace other devices by Cairo. They are described in detail in the documentation corresponding to the device that is being replaced.

display

X11 display, see X11

gamma

gamma correction

xpos

see X11

ypos

see X11

filename

same as file in Cairo

res

resolution in ppi, see png, will override dpi in Cairo if set to anything other than NA or NULL. Note that cairographics does not support tagging PNG output files with DPI so the raster image will be produced with the dpi setting, but readers may render it at some default dpi setting.

quality

quality of the jpeg, see jpeg

onefile

logical: if true (the default) allow multiple figures in one file (see pdf). false is currently not supported by vector devices

family

font family, see pdf

title

see pdf

fonts

see pdf, ignored, Cairo automatically detects and embeds fonts

paper

see pdf (ignored, Cairo uses device dimensions)

encoding

see pdf (ignored, Cairo uses native enconding except for symbols)

fg

see pdf (ignored)

pagecentre

see pdf (ignored, Cairo uses device dimensions and thus it is irrelevant)

horizontal: see postscript (ignored)
print.it: see postscript (ignored)
command: see postscript (ignored)
colormodel: see postscript (ignored, Cairo always uses RGB or ARGB)

Value

The (invisible) return value is NULL if the device couldn't be created or a Cairo object if successful. The vaule of the object is the device number.

Known issues

The X11 backend is quite slow. The reason is the cairographics implementation of the backend, so we can't do much about it. It should be possible to drop cairographics' Xlib backend entirely and use image backend copied into an X11 window instead. We may try that in future releases.
TrueType (and OpenType) fonts are supported when this package is compiled against a cairo graphics library configured with FreeType and Fontconfig support. Therefore make sure have a cairo graphics library with all bells and whistles to get a good result.
R math symbols are supported, but require a TrueType "Symbol" font accessible to Cairo under that name.

Examples

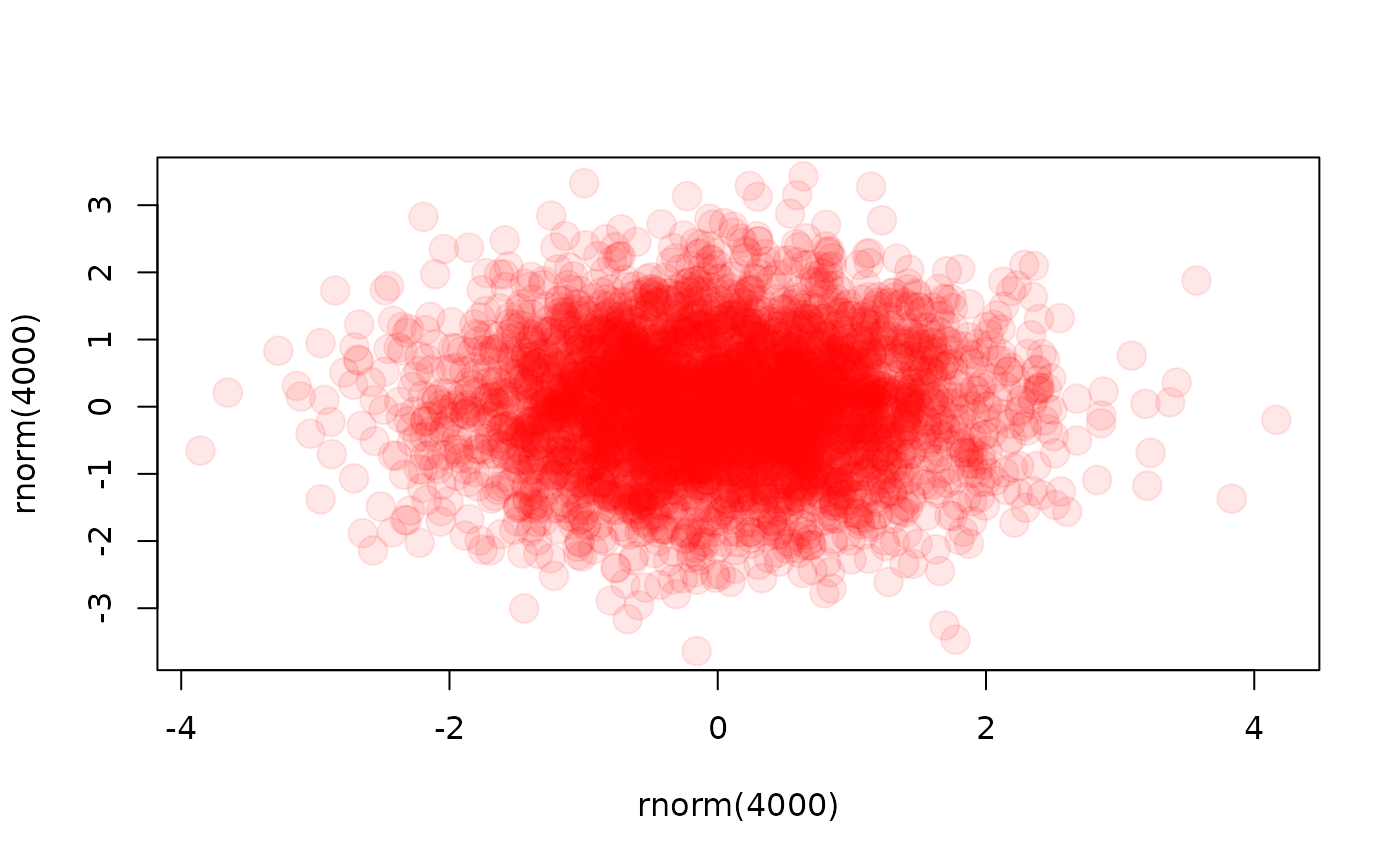

# very simple KDE
Cairo(600, 600, file="plot.png", type="png", bg="white")
plot(rnorm(4000),rnorm(4000),col="#ff000018",pch=19,cex=2) # semi-transparent red

dev.off() # creates a file "plot.png" with the above plot
#> agg_png
#>       2

# you can use any Cairo backend and get the same result
# vector, bitmap or on-screen
CairoPDF("plot.pdf", 6, 6, bg="transparent")
data(iris)
attach(iris)
plot(Petal.Length, rep(-0.03,length(Species)), xlim=c(1,7),
     ylim=c(0,1.7), xlab="Petal.Length", ylab="Density",
     pch=21, cex=1.5, col="#00000001", main = "Iris (yet again)",
     bg=c("#ff000020","#00ff0020","#0000ff20")[unclass(Species)])
for (i in 1:3)
  polygon(density(Petal.Length[unclass(Species)==i],bw=0.2),
    col=c("#ff000040","#00ff0040","#0000ff40")[i])

dev.off()
#> agg_png
#>       2

## remove the example files if not in an interactive session
if (!interactive()) unlink(c("plot.png","plot.pdf"))
